ITD51
1 Piece PVC Island Tub Drain® Testable Rough-in for Freestanding Tubs
Barcode: 775439040742
Description
Our original Island Tub Drain was groundbreaking, creating a new category and setting the industry benchmark for freestanding tub drains. ITD is still 100% engineered and manufactured in Canada.
- Smaller all plastic Asymmetrical Deck Flange makes installation in tight spaces easier
- Allows for freestanding Tub location to be defined at rough-in
- Designed to be installed in a 8" joist space or greater
- Allows for freestanding Tub to be installed over finished floor

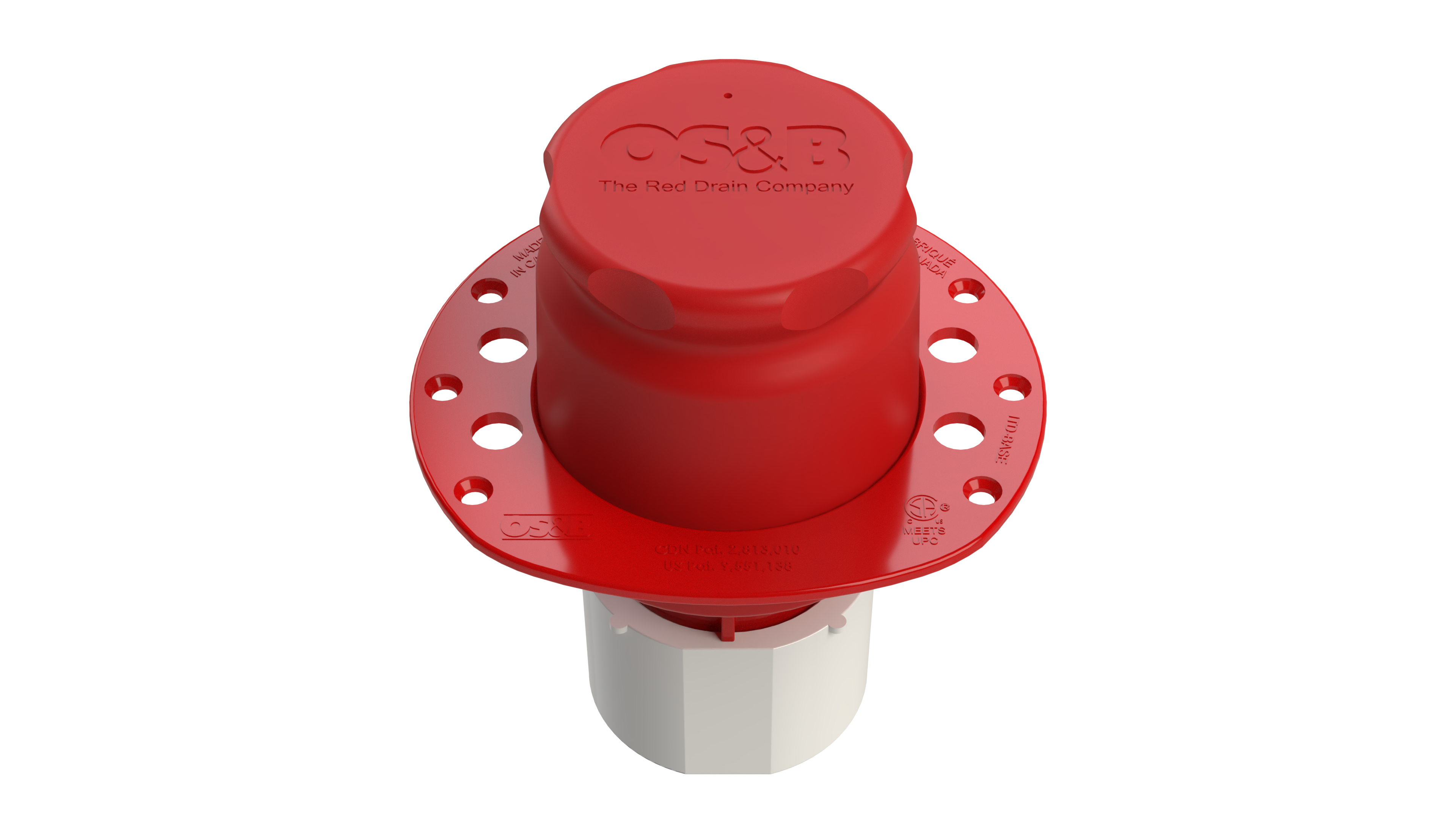

- Built-in Snap-off Test Cap allows for water/air/smoke testing
- NOTE: Island Tub Drain® IS NOT FOR USE with liquid applied or sheet membranes
- NOTE: Island Tub Drain® MUST BE INSTALLED in a dry area with no potential of water contact
- Island Tub Drain® is Patented (Canadian Patent 2,813,010 & US Patent 9,551,138)
Features
- More compact Asymmetrical Deck Flange makes installation in tight spaces easier
- Low profile 1 piece design allows for installation in 8" joist space or greater
- Deeper Well design accommodates bath drain fittings
- Built-in Snap-off Test Cap allows for water/air/smoke testing (Rated to 30psi)
- Island Tub Drain assembly
- Flanged Brass Tailpiece w/Nut & Washer and Lubricant. Other Tailpieces available from OS&B
- PVC Adapter Kit. Attaches to PVC Bath Wastes
- 2" x 1-1/2" PVC Reducing Bushing
- Removable Mortar/Debris Guard and Cutting Template
Specs
- Material: PVC
- Carton Quantity: 10
